THIS PROCEDURE MUST BE PERFORMED BY A QUALIFIED TECHNICIAN.

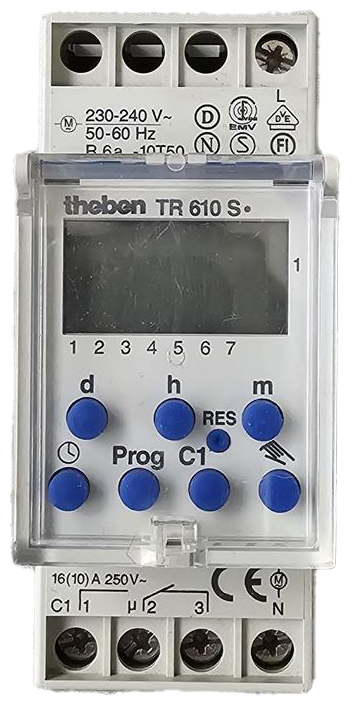

7-button TR610S (Obsolete)

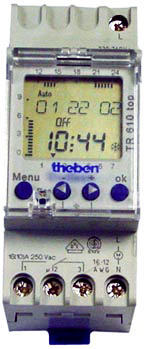

4-button TR610 Top (Screw terminals, Obsolete)

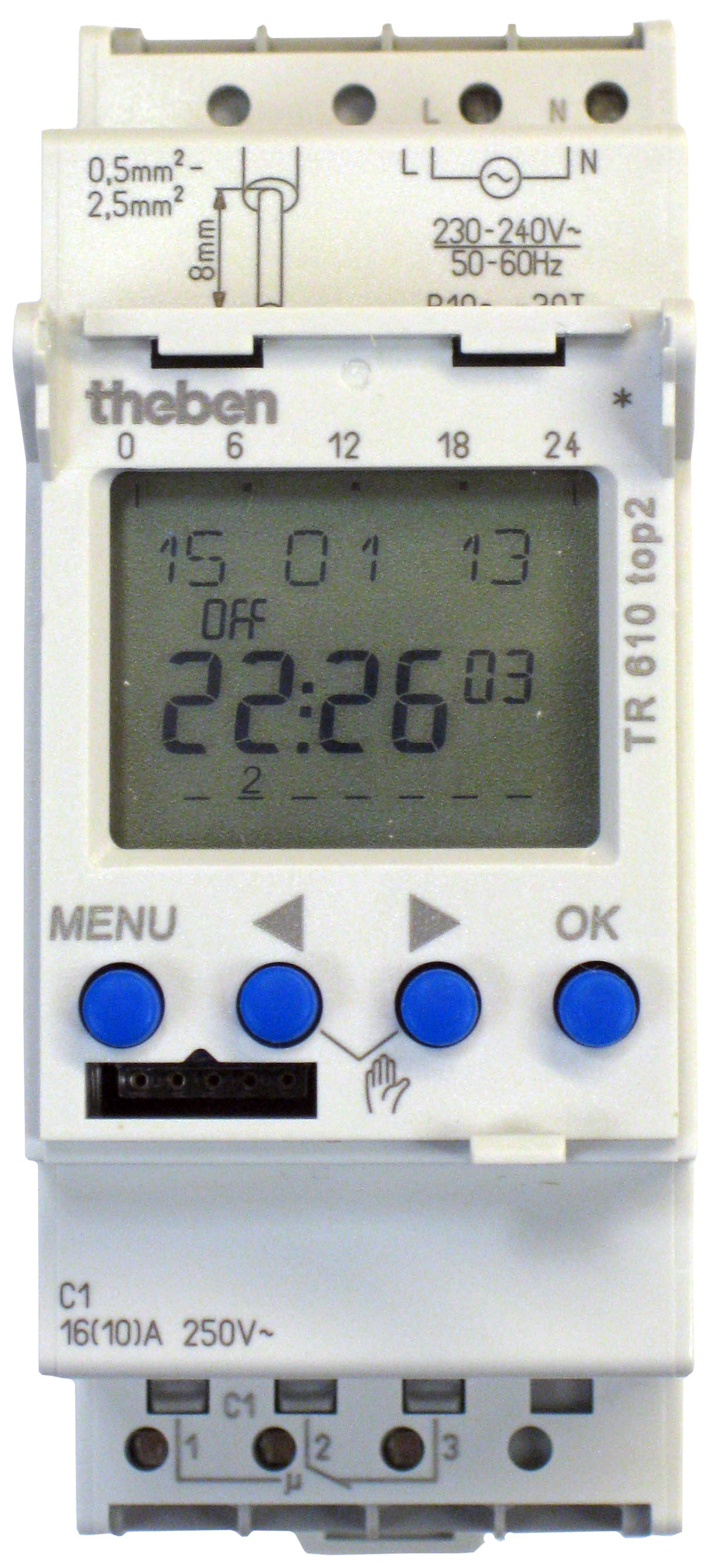

4-button TR610 Top2 (Push Terminals, Current)
THIS PROCEDURE MUST BE PERFORMED BY A QUALIFIED TECHNICIAN.
7-button TR610S (Obsolete)
4-button TR610 Top (Screw terminals, Obsolete)
4-button TR610 Top2 (Push Terminals, Current)
Provides low voltage peak control or room temperature set back signals directly to Steffes 2000 and 1000 series room units and Steffes Power Line Carrier Control systems.
Operating Voltage 115V or 230V (specify when ordering)
Seven-Day programmable with 56 Memory Locations
Automatically adjusts to daylight savings time (if applicable)
Override Capability
Switching capacity - 10 AMPS/250VAC
10 year Lithium Battery
Easily Installed on Din Rail
Can be pre-programmed prior to installation (program and time settings retained for the life of the battery)
Three versions of the Theben timeclock have been used:
