THIS PROCEDURE MUST BE PERFORMED BY A QUALIFIED TECHNICIAN.

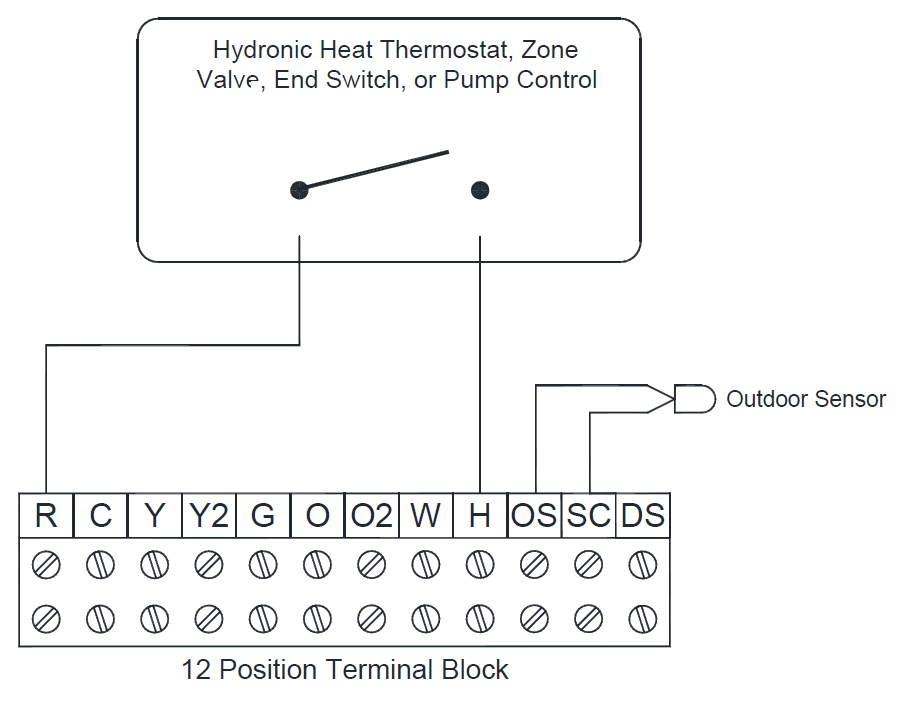

A low voltage (24VAC) room thermostat can be used for room temperature control with the ThermElect Hydronic system. If so, Steffes recommends using a digital thermostat. To initiate a heat call, the system needs a switch closure from R to H. This energizes the primary loop pump outputs.
|
Comfort Plus Hydronic 12 Position Low Voltage Terminal Block Coding |
|
|---|---|
|
R = Low Voltage Hot |
O = Reversing Valve Input |
|
C = Low Voltage Common |
O2 = Reversing Valve Output |
|
Y = Compressor/Stage 1 Heat Call |
H = Hydronic Heat |
|
W = Stage 2 Heat Call |
OS = Outdoor Temperature Sensor |
|
Y2 = Compressor Output |
SC = Outdoor Temperature Sensor Common |
|
G = Fan Call |
DS = Duct Temperature Sensor |
