Primary Loop Pump Connection - 9100 Series

WARNING

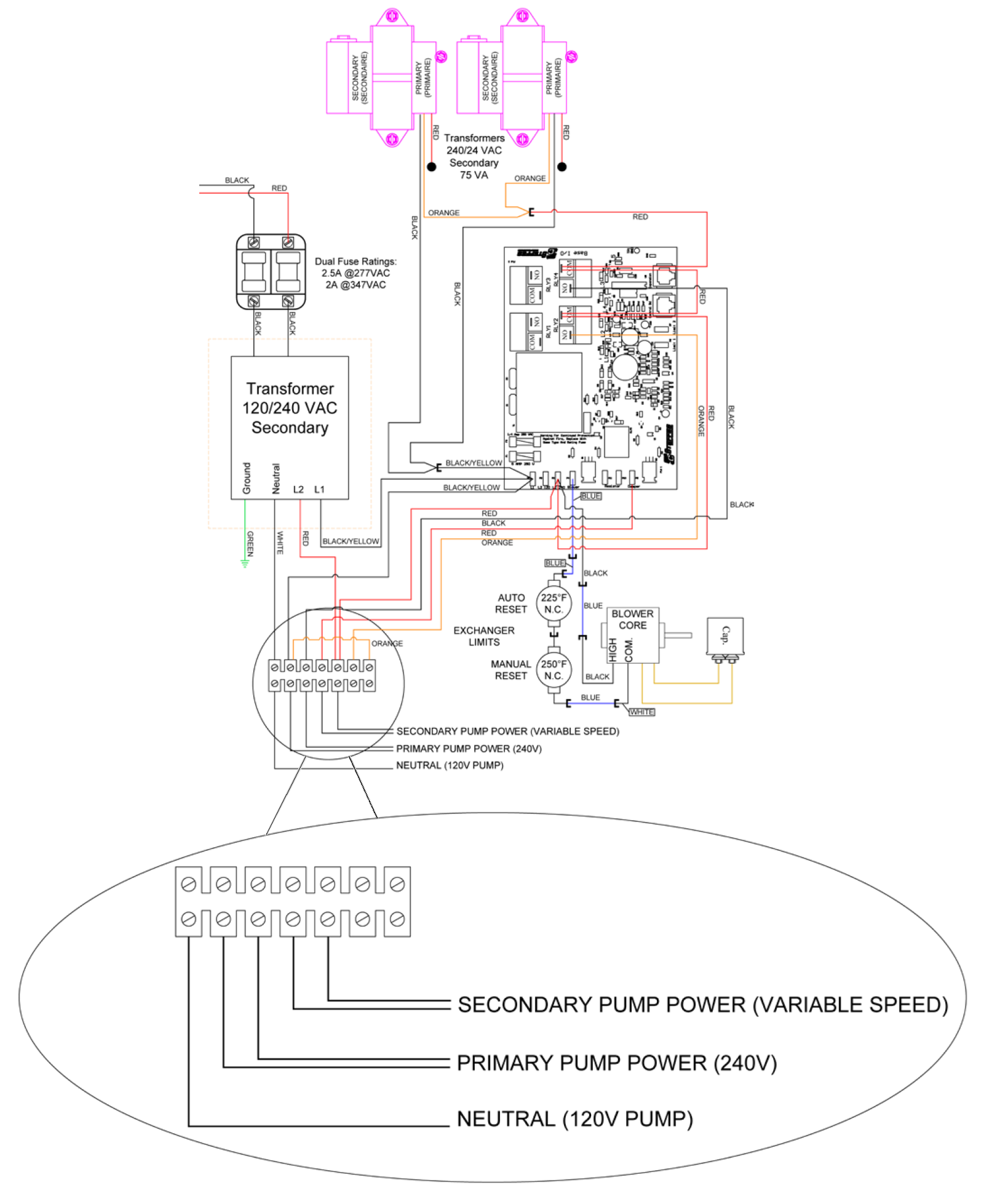

A 120 or 240V single phase pump can be used. Connect the pump only to the terminals inside the electrical panel marked for connection of the primary loop pump as shown below.

NOTE: Do not use pumps with relay outputs or electronics.

Primary pump not to exceed 1.7 amps.

Total connected loads not to exceed 2.2 amps.

Make wiring connections according to manufacturer’s instructions and appropriate line voltage wiring diagram.

wiring diagram

9100 Owner's Manual English 1200067 Rev 12
