WARNING
Risk of fire. Can cause personal injury or death. DO NOT operate the Comfort Plus system if damage to the insulation panels on the inner sides of the brick core occurs.
Load the brick, one row at a time, using a left side, right side, center pattern. Start at the back of the brick core and work forward. Make sure the brick are placed so the grooved side is facing up and the ridges are on the left and right. (See Figure 3.)
Brick Installation Tips:
-
Install bricks carefully to avoid damage to the insulation panels.
-
Remove loose brick debris to prevent uneven stacking of brick, as this can make installation of the elements and the brick core temperature sensor(s) difficult.
-
Brick rows MUST line up front to back and side to side.
-

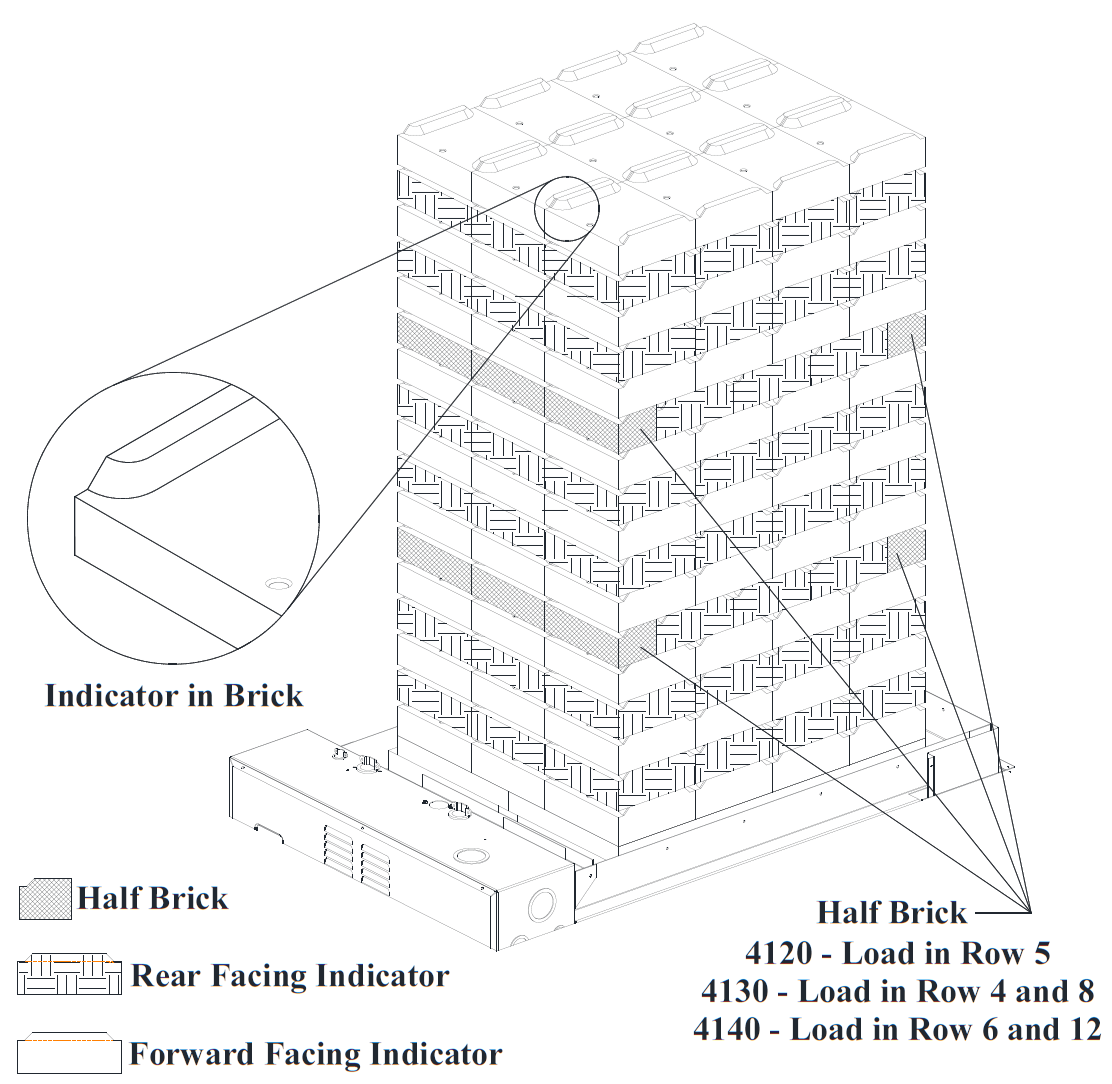

Half brick makes brick loading easier by evening out the stacks. Use half brick (white boxes) in the proper rows and positions as indicated in Figure 3.
-
Alternate the direction of the brick’s indicator in every other brick row. See Figures 1 and 2.
-

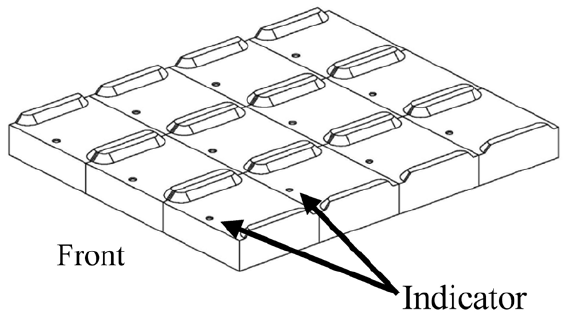

All bricks in odd numbered rows (1, 3, 5, 7, 9, and 11) must have the indicator facing forward as shown in Figure 1.
-

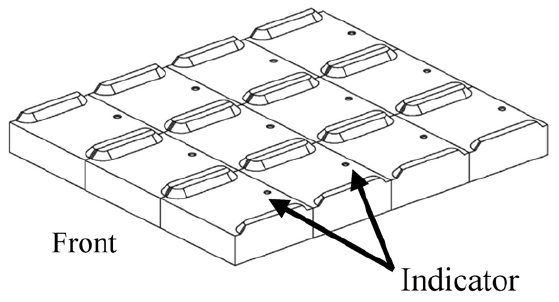

All bricks in even numbered rows will have indicator facing back. See Figure 2.
