9100 Integrated SSR - Pump and Blower Wiring Diagram

WARNING

HAZARDOUS VOLTAGE: Risk of electric shock. Can cause injury or death. Heater may be connected to more than one branch circuit. Disconnect power to all circuits before servicing.

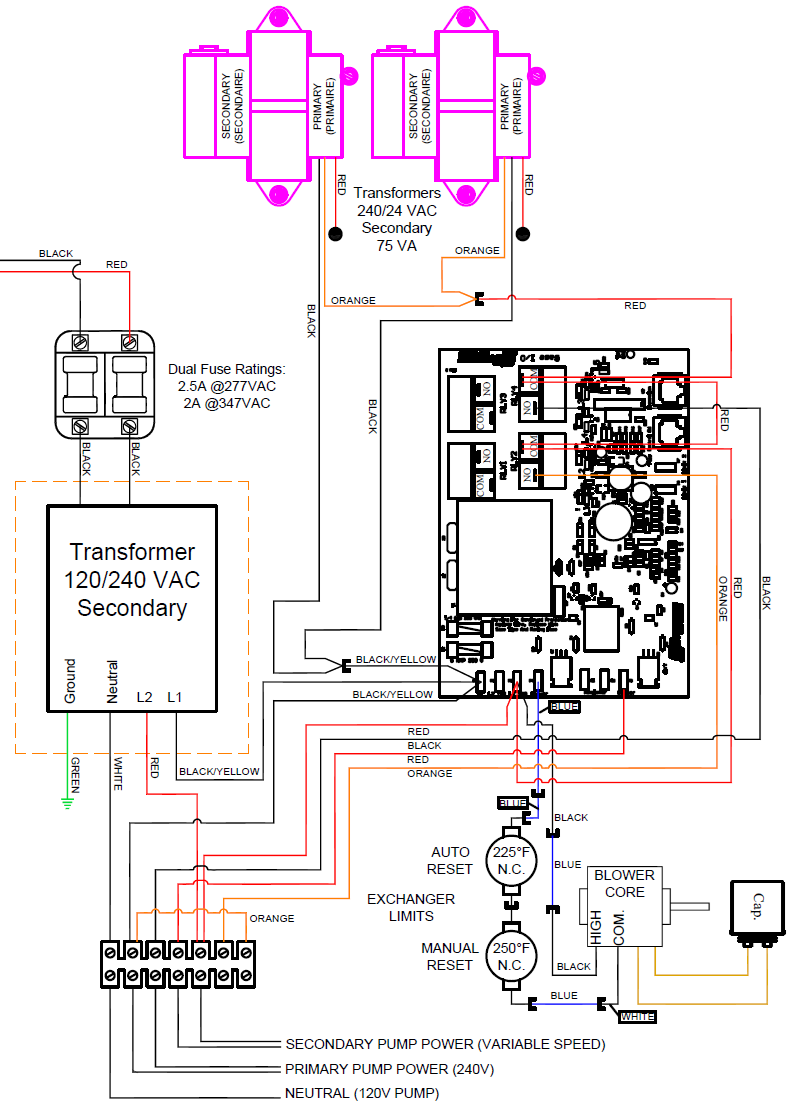

Line voltage wiring diagram

Use copper or aluminum conductors rated for 75°C or higher for field connection of this device.

9100 Owner's Manual English 1200067 Rev 12
